Description:

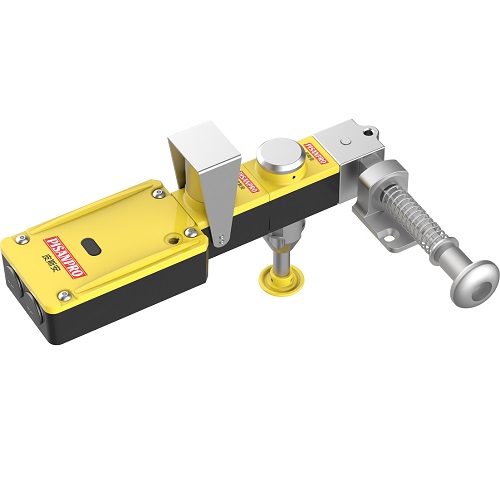

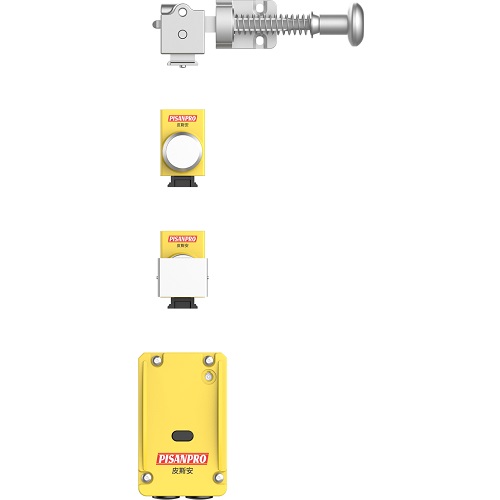

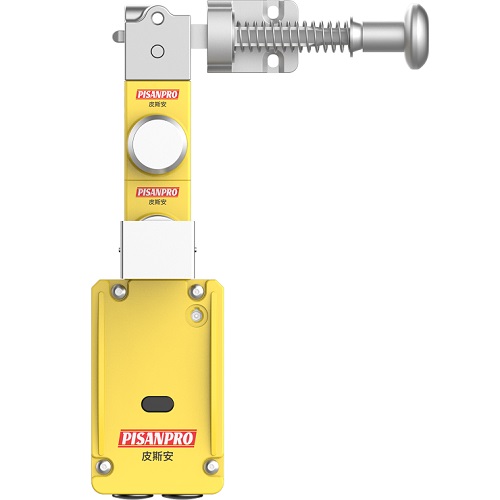

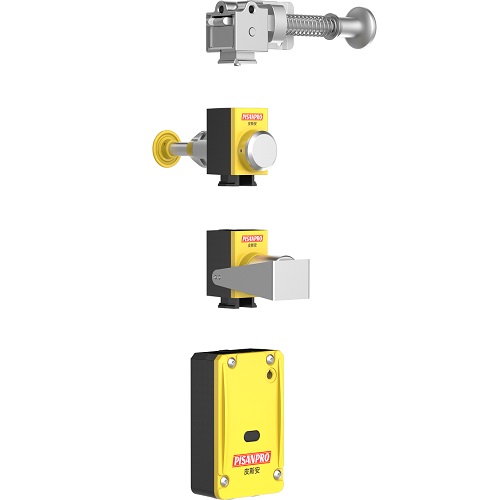

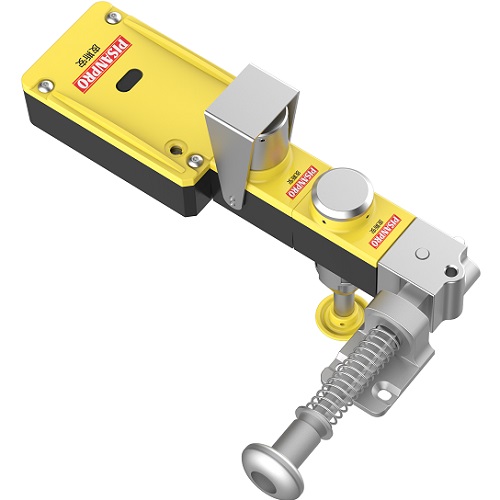

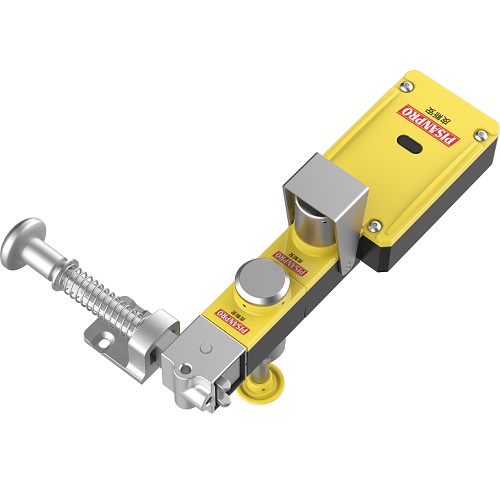

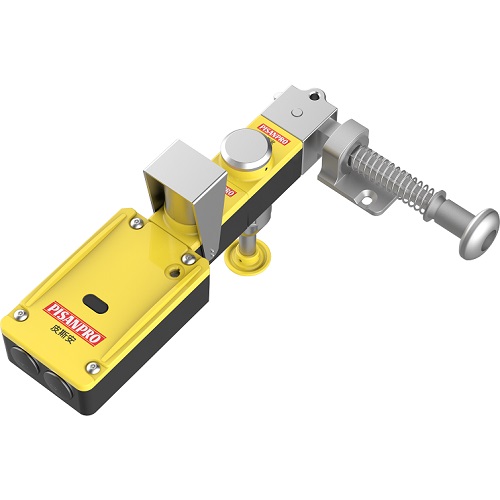

PISANPRO AMG products are the perfect solution in the field of industrial safety. At the same time, they are based on the modular design principle, so that BAN-AMKEY safety interlock can more flexibly and simply construct the interlock system solution, and customize some required application solutions for customers. Functions such as internal release / authorization key / safety key and emergency stop button can be integrated on the traditional safety door switch and electromagnetic safety door lock.
The excellent robustness and reliability of BAN-AMKEY products can ensure the reliability of applications in any harsh and dangerous operating environment, while still meeting the applications with safety levels of SIL3 (EN / iec62061) and Le (iso13849-1).

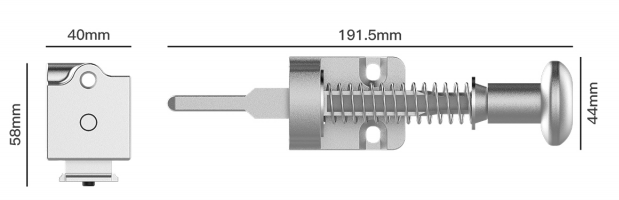

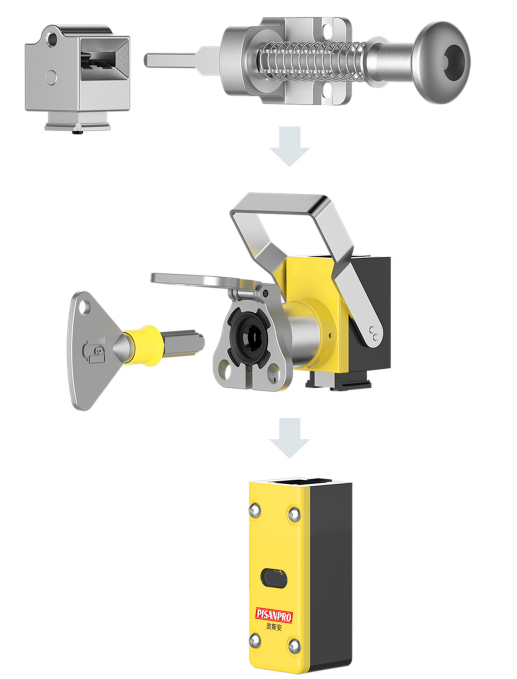

Accessory 1: Lock Bolt and Lock Handle

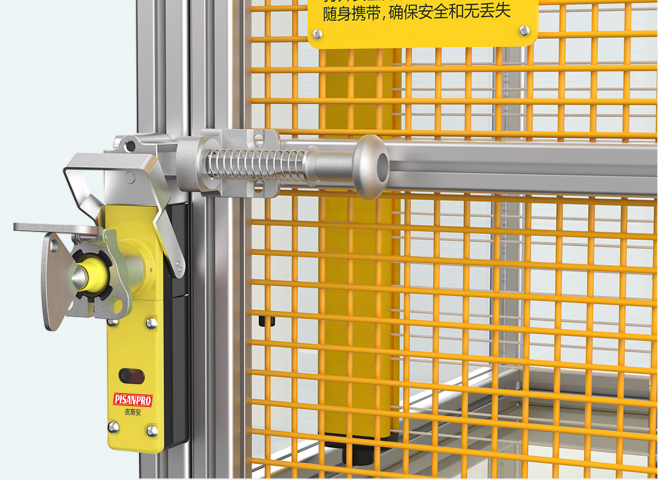

It can be used for hinged doors or sliding doors
Stainless steel casting material
Bearing Capacity: 2500N

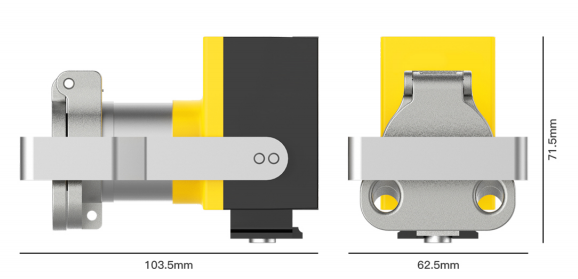

Accessory 2: Security Key Adapter
This device can ensure that the machine/equipment can not be restarted accidentally if the security key is not returned.It can prevent operators from being accidentally locked in the protection area.
It can be stacked or combined with other security key adapters(Multi person operation)
It can integrate an interlocking system with PISANPRO AMG interlocking series products at the same time
A maximum of 5 security key adapters can be sued on one security door

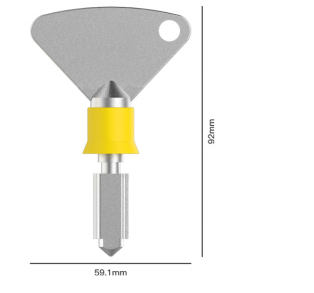

Accessory 3: Security Door Interception Key
Coding capacity up to 200,000 different combinations
Can be equipped with universal lock cylinder
Provide lettering service

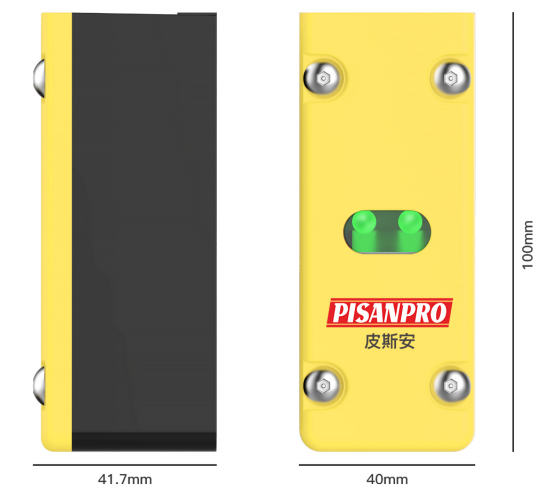

Accessory 4: Safety Door Switch Lock Body
The double safety loop is used to achieve the interlocking between the machine operation and the safety door
It is applicable to machines that need frequent access and no stop time
Non electromagnetic coil control
The indicator light can identify the status of the emergency door
Provide internal connection terminal, fast cable and safety bus interface
Control Voltage
24V AC/DC
48V AC/DC
Technical Parameter:
Material:Zinc alloy BSEN 12844 standard Stainless steel (bs3146)
Surface Painting:Glossy polyester powder coating
Color:Yellow,black,stainless steel
Waterproof grade:IP67
Operating force: 0.5N
Locking force:2500N
Service life of machanical part:＞1,000,000 times
Applicable terperature:-5℃ to +40℃
Main switch:Positive disconnection
Control current:3A
Switching voltage:48V
Switch contacts:4NC/2NP,2NC/1NO,2N O/2NC
Contact material: 90% silver, 10% nickel
