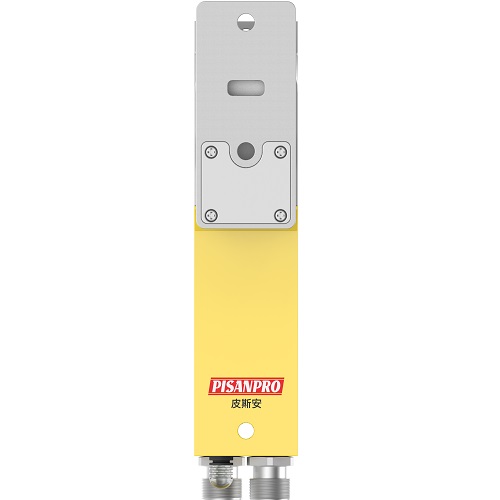

Introduction of PISANPRO MG Series:

The MG series is a newly launched of our safety interlock system, a compact but ultra-robust RFID high-coded electromagnetic interlock. The installation is simple and flexible, and the output signal is OSSD type, which can meet the highest PLe (Cat.4) industrial safety application requirements.

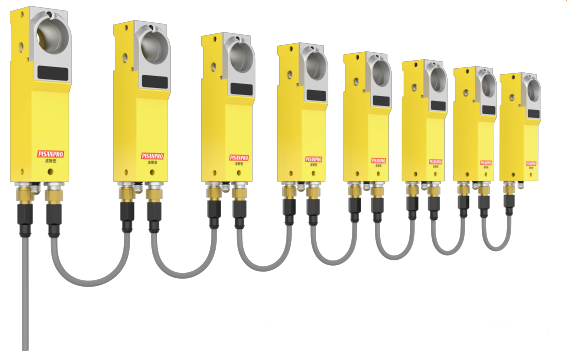

Capable of connecting up to 10 units in series for IP67 applications

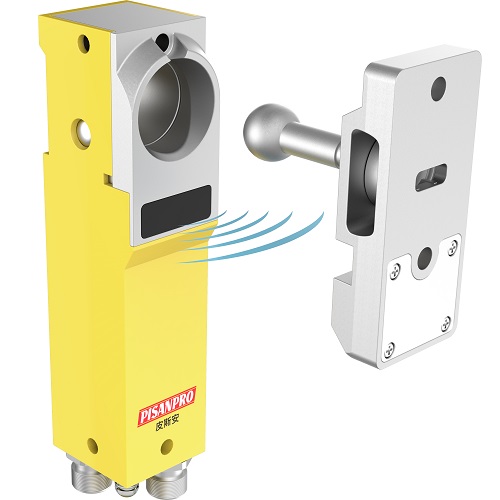

MG-HIGH Code RFID

Using high-code RFID identification chips, it can provide more than one million combination codes and meet the requirements of ISO 14119.

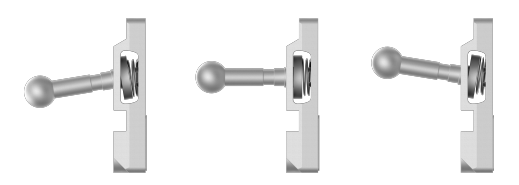

MG - High Mechanical Tolerance

The mechanical latch can be rotated flexibly and is suitable for small diameter hinged door applications. The maximum locking strength of the product is 7500N.

MG series - OSSD signal output

The use of OSSD type signal output can prevent the occurrence of fault shielding when multiple products are connected in series, and ensure that the system can reach the safety level of PLe.

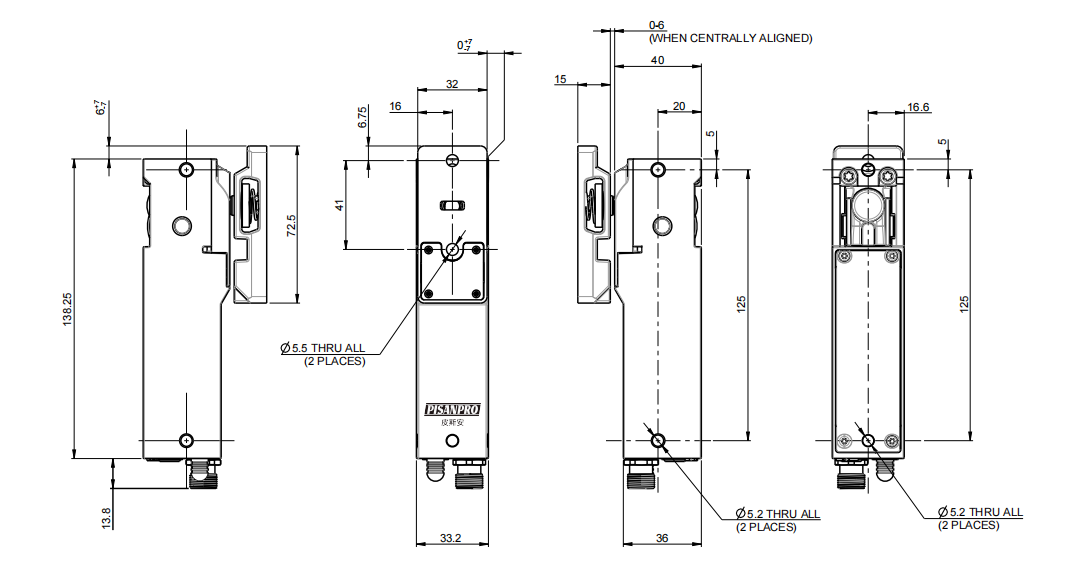

MG Size
